Industrial & Mobile IoT EDGE Cloud Platform AGENDA - ANVISX™ M2M/mIIoT Integration Platform DESIGN

Project Design License No / Broj licence odgovornog projektanta : 352 3842 03, Measuring/Metering, Controlling, Process automation, Electromotor Drives



Dragan Marinković, dipl.ing.el.*/MScEE : e-mail me

* University Diplom degree of 5 years Integrated studies in electrical engineering, computer science and automation departman(1990). * World wide reputation prior to the Bologna Process 2003.
* Dipl.-Ing / dipl. ing. el. - German and Serbian academic diplom degree title equivalent of M.Sc.E.E. according to Bologna Process.


Develop & Project Design & Implementation of Software & Hardware solutions

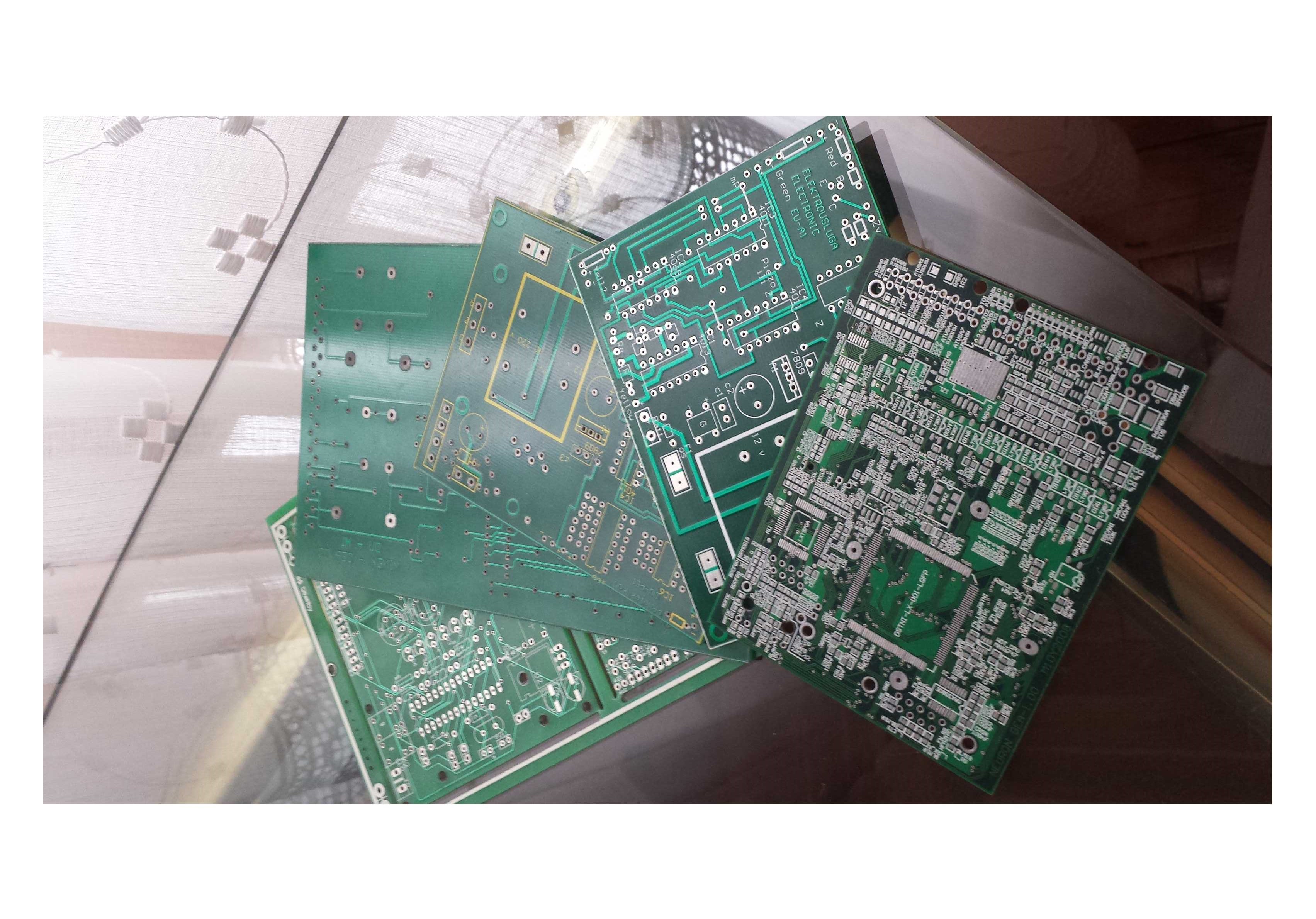

SHEMATIC & PCB DESIGN FOR implementation of software & hardware solutions

CONTROL SOFTWARE & SHEMATIC & PCB DESIGN

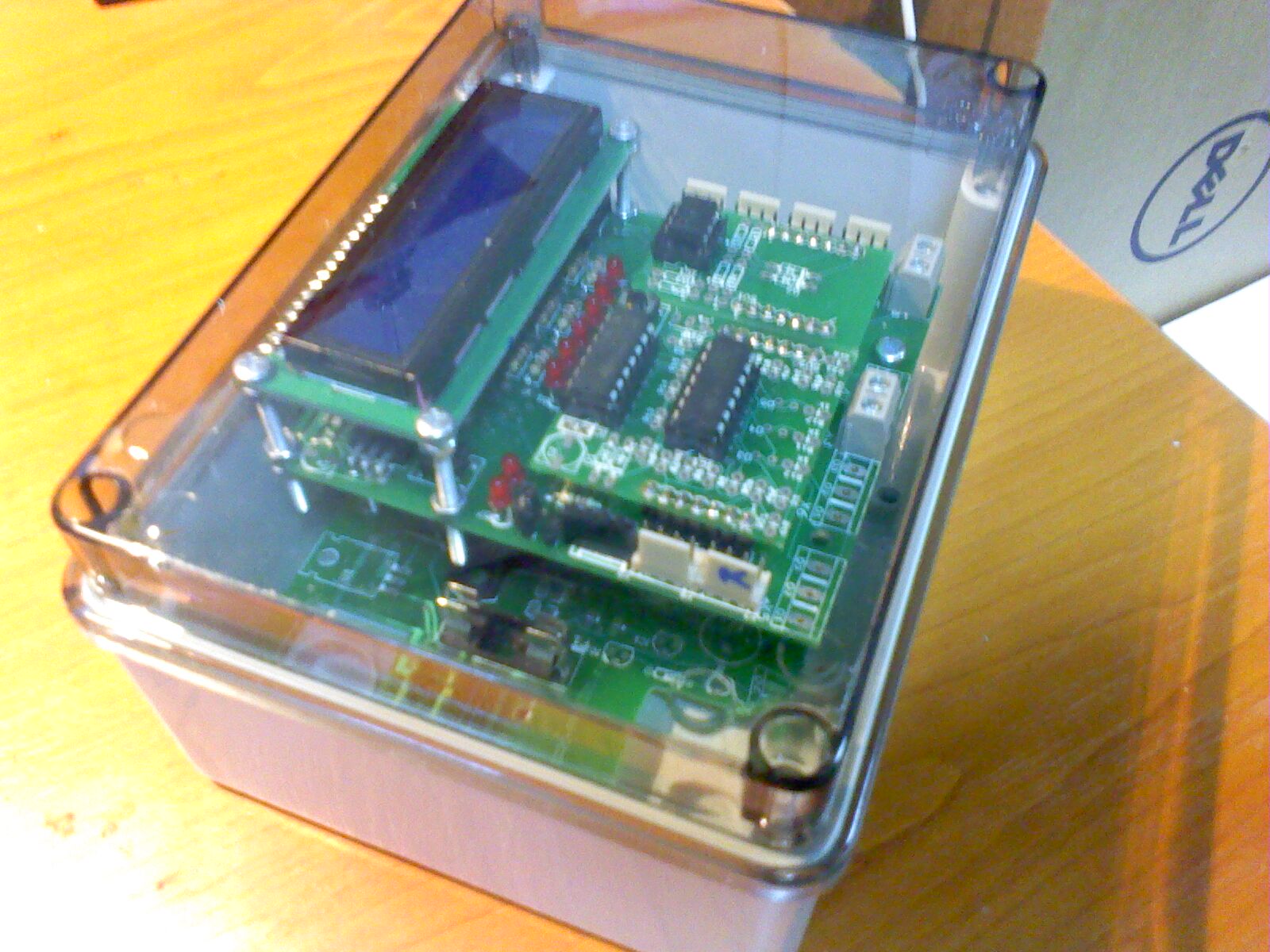

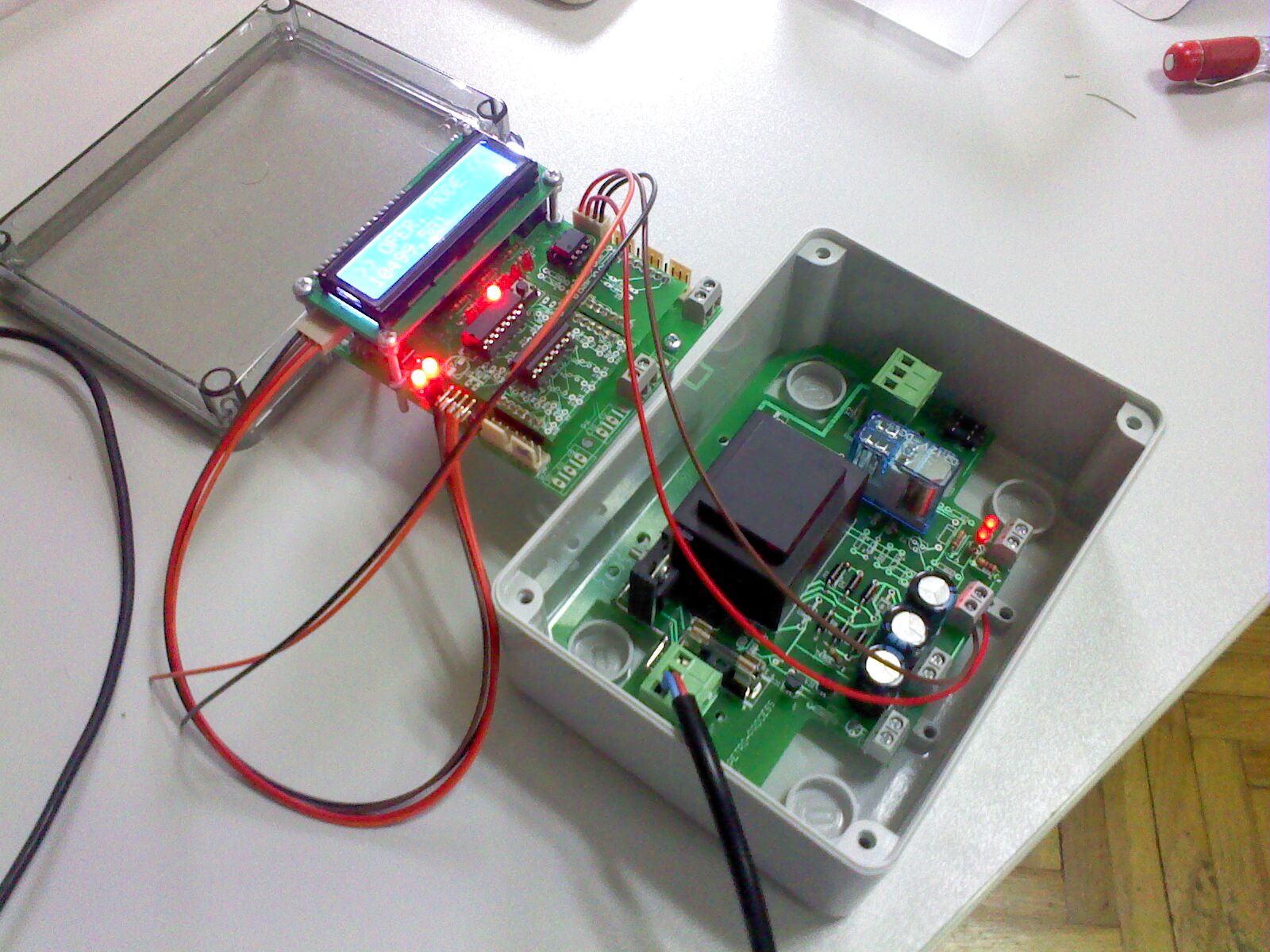

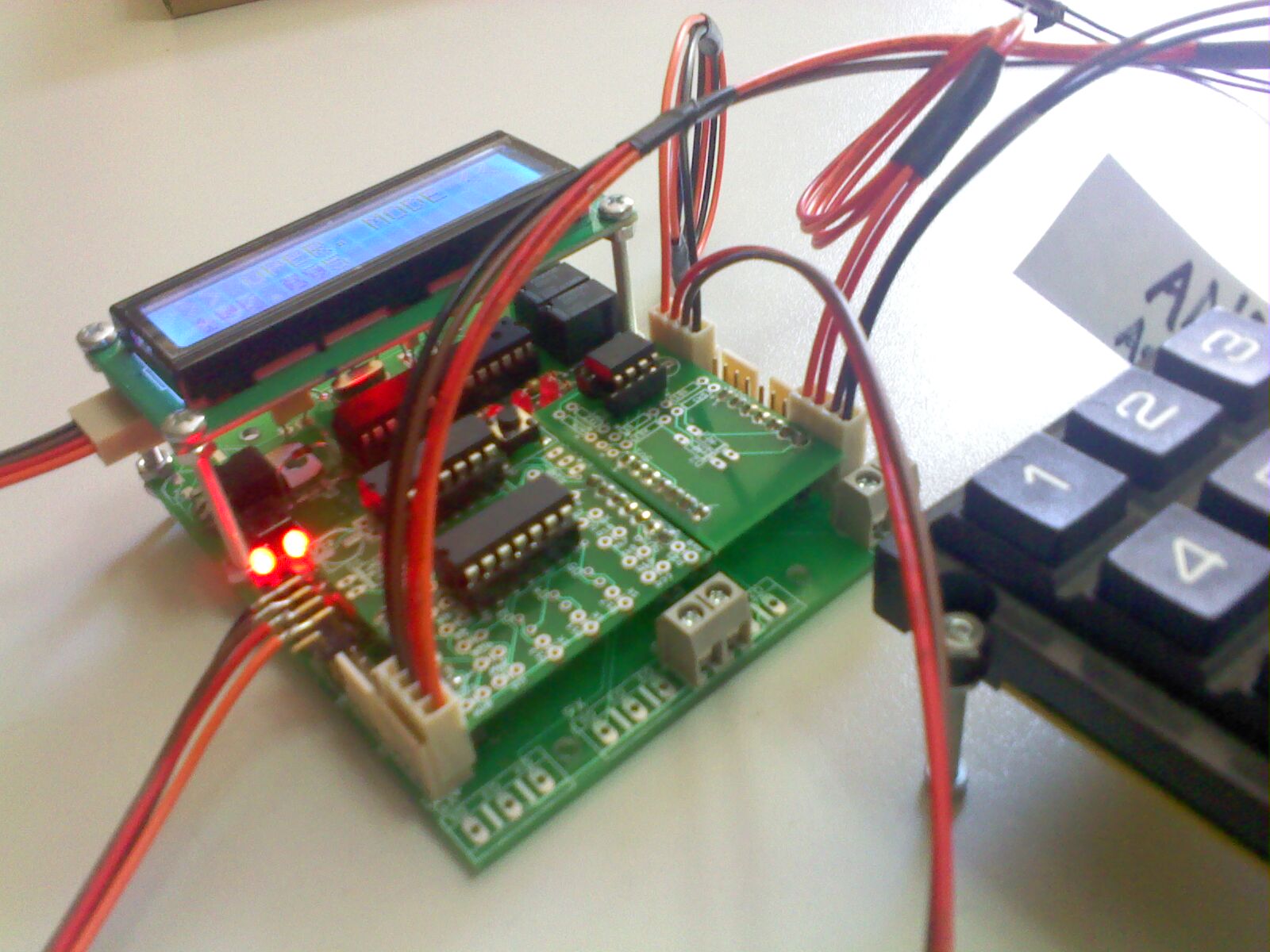

Digital PID Temperature regulator with FUZZY LOGIC segment in control loop with LCD display and triak & relay out for load (Pt1, heat coil) drive control

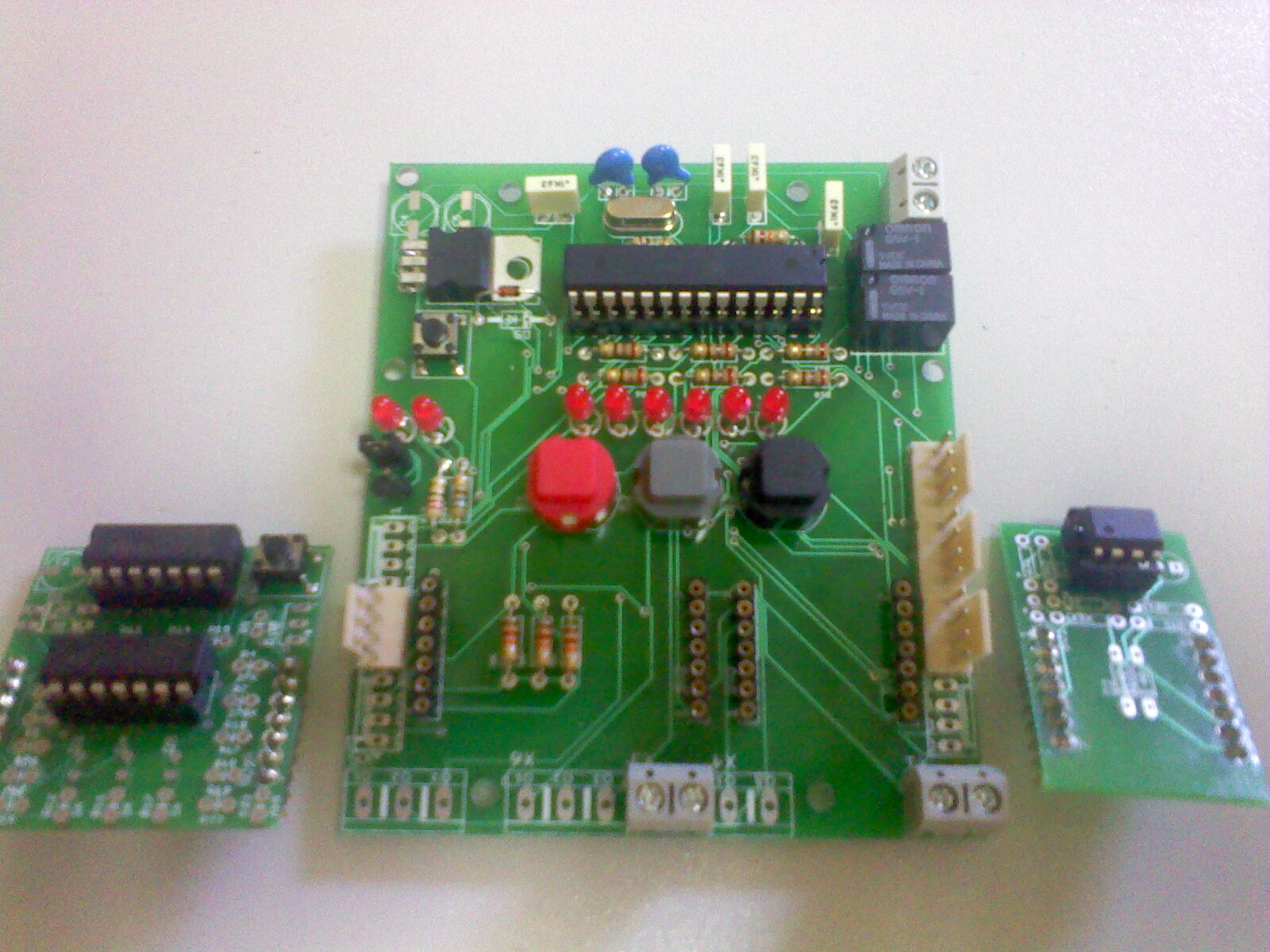

Based on Atmel uC328 & Arduino loader & IDE, hw/SW project design 2015/2016,Petroprocess, Author & Project architect

Additional hardware level temperature overheat protection for process sensor damage situation (Pt2) - implement with OP AMP and RS FLIP-FLOP on the top of motherboard.

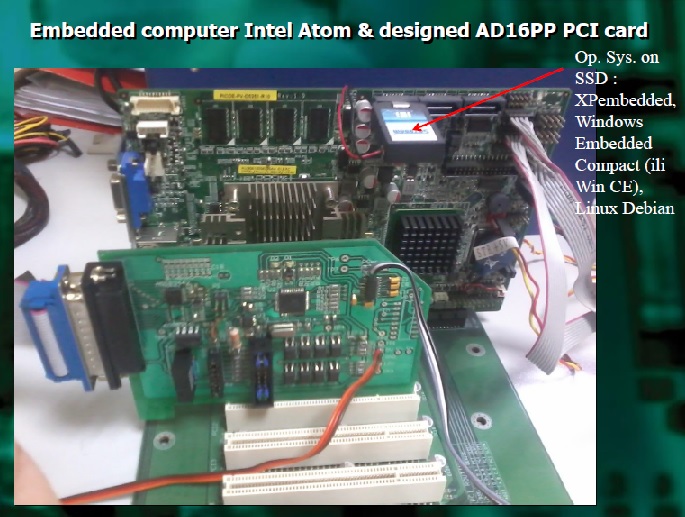

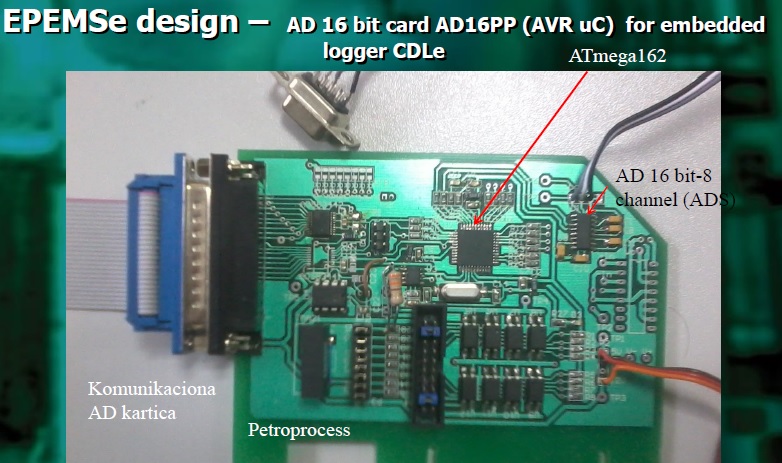

AD card - 16 channels & 16 bit card for Embedded Data Logger with ATmega162 - AD16PP, EPEMS project

Embedded Data Logger with designed AD16PP AD card - EPEMS project,

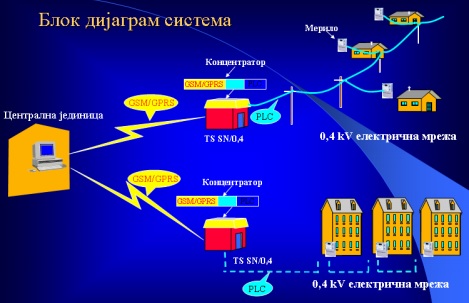

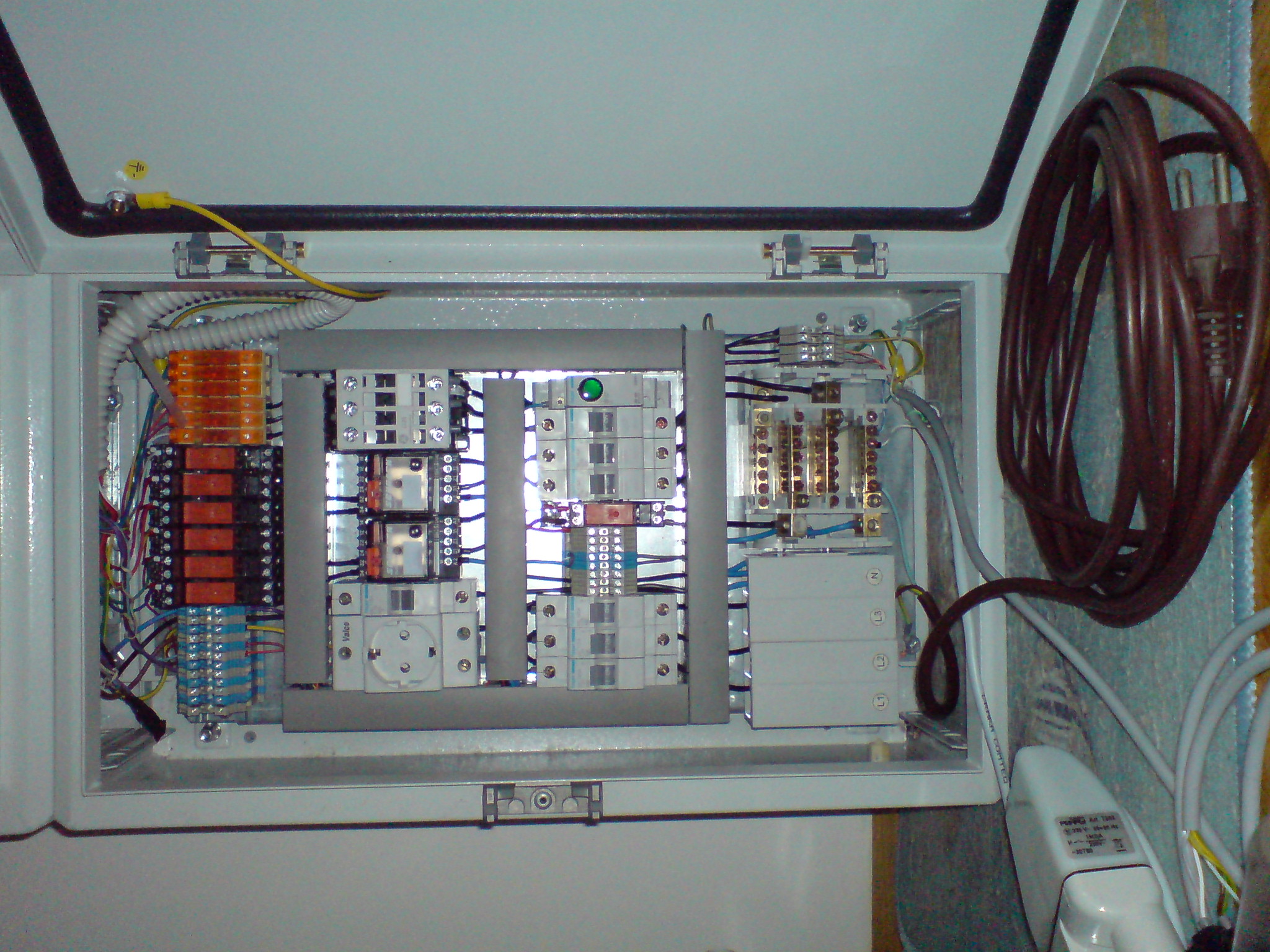

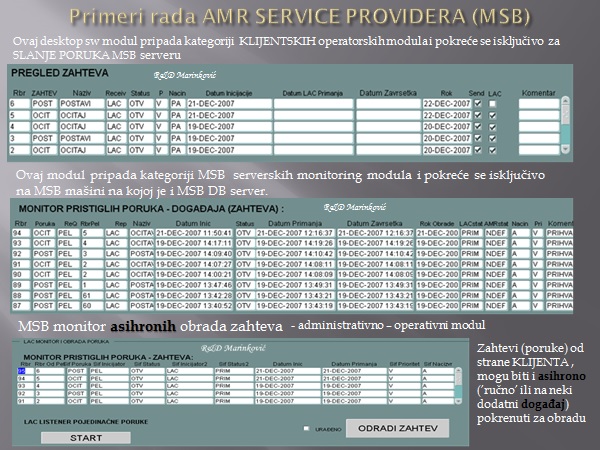

AMR SERVER PROVIDER DESIGN : AMR <--> ELECTRIC POWER SYSTEM DATABASES (for CRM Billing System), Author & Project architect

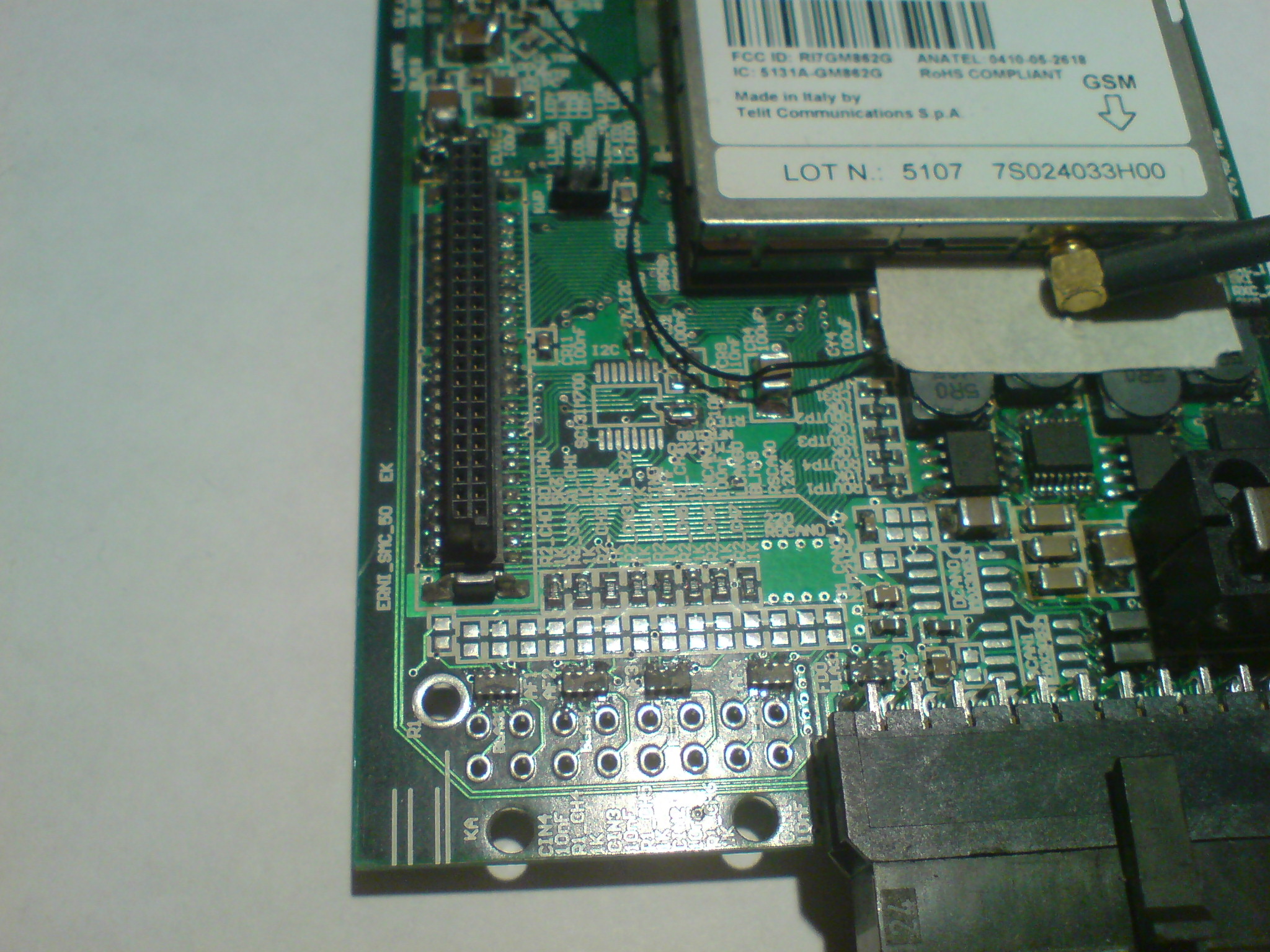

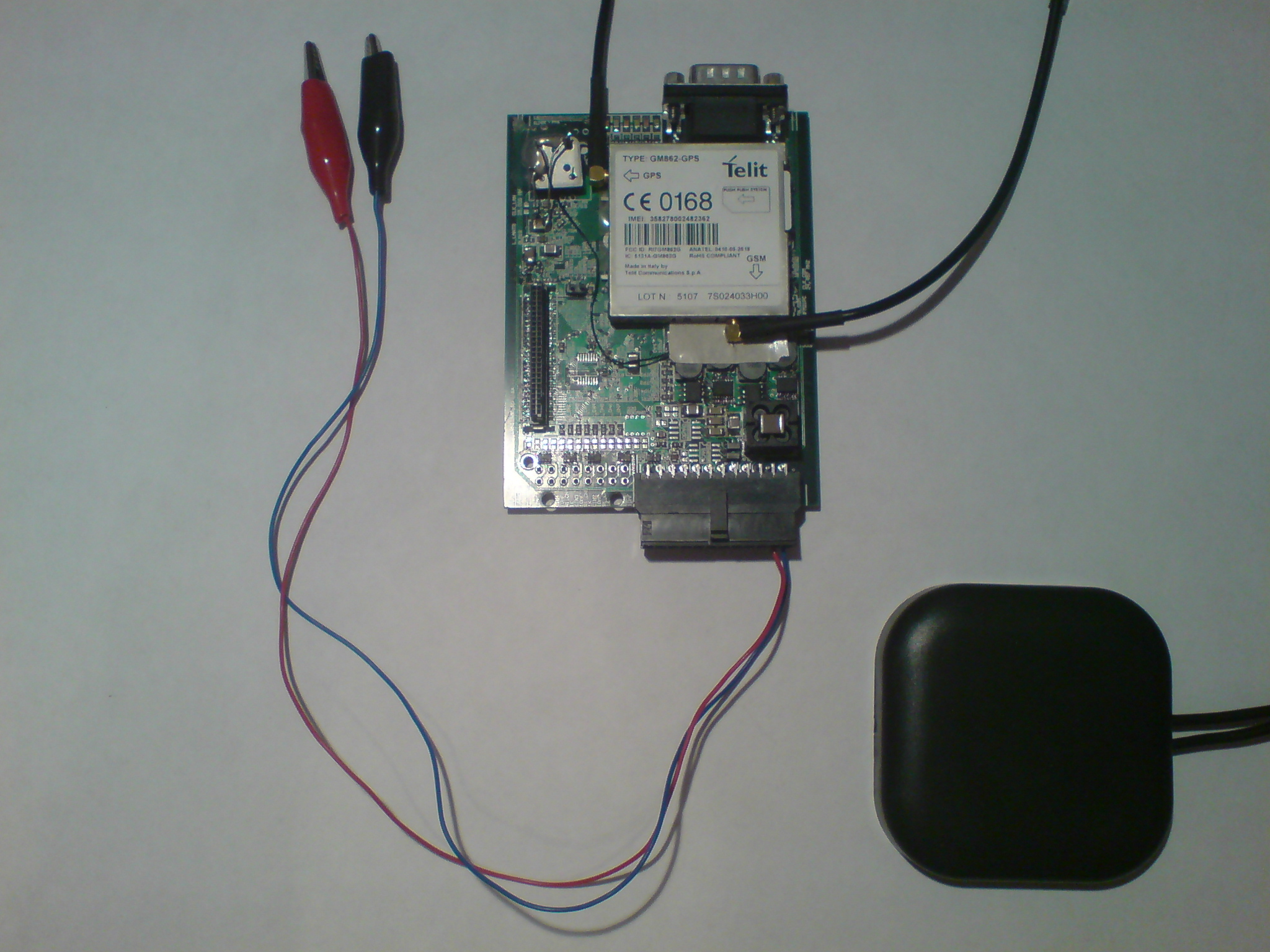

GPS & GSM SOFTWARE DESIGN

GPS - VGPMMS - Visual Global Position Mobile Management System Visual GPS Monitorig System (VGPMMS2010), Team project

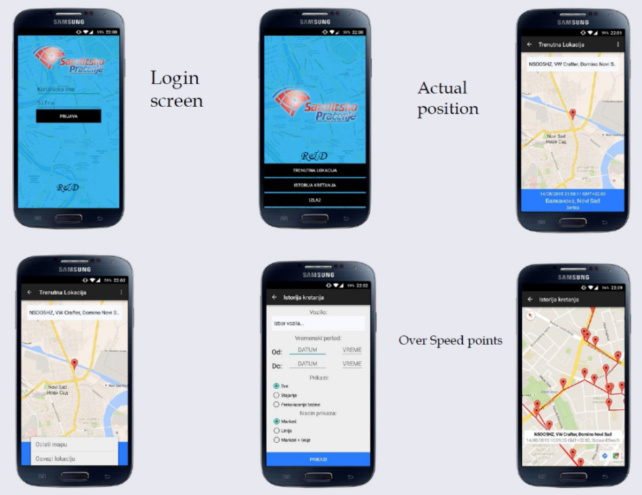

ANVISX-ANVISgps™ - Advanced Network Visualisaton for GPS tracking

ANVISgps project : DESIGNED COMPLETE BACKEND GSM, GPS, DATABASE services, Author & Project architect

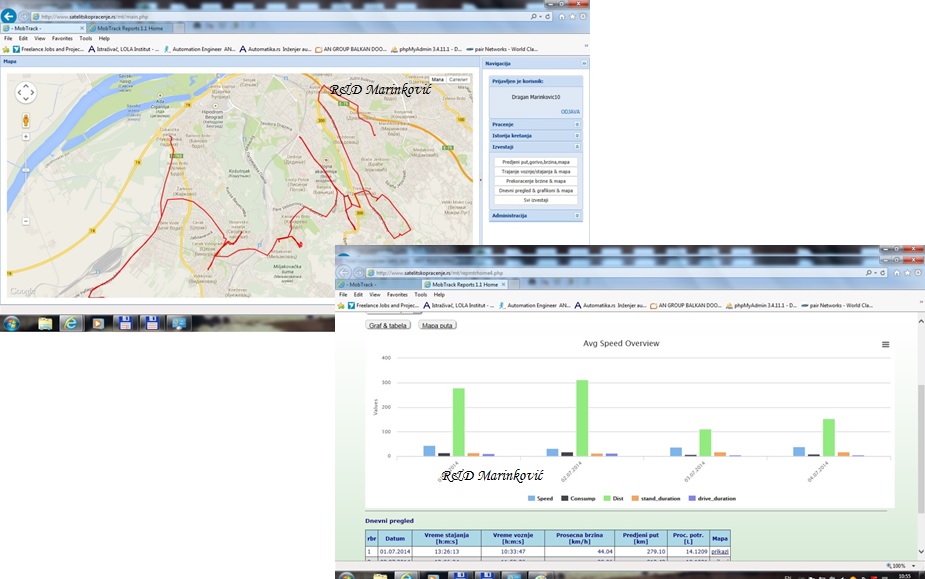

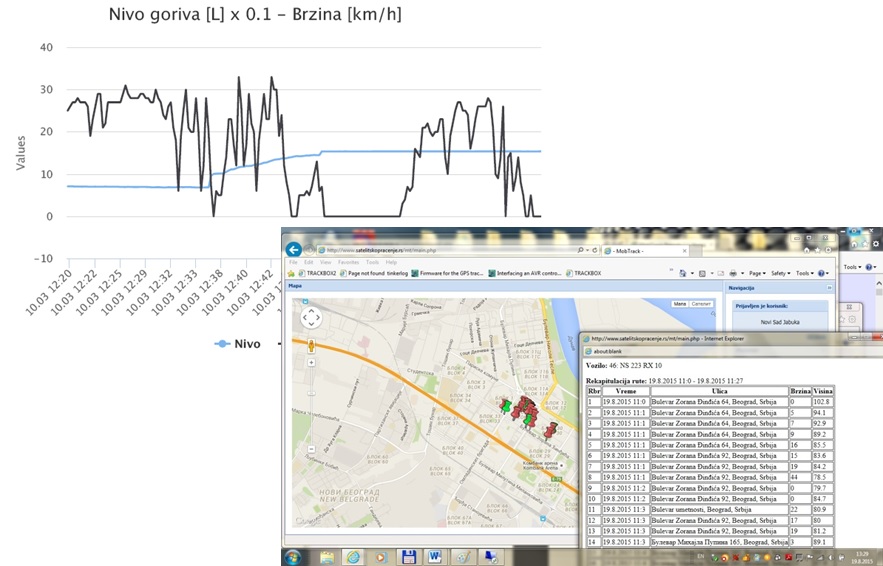

Solution Link1: MOBTRACK Monitoring System

Solution Link2: MOBTRACK site GPS tracking examples





MISSION CRITICAL SOFTWARE

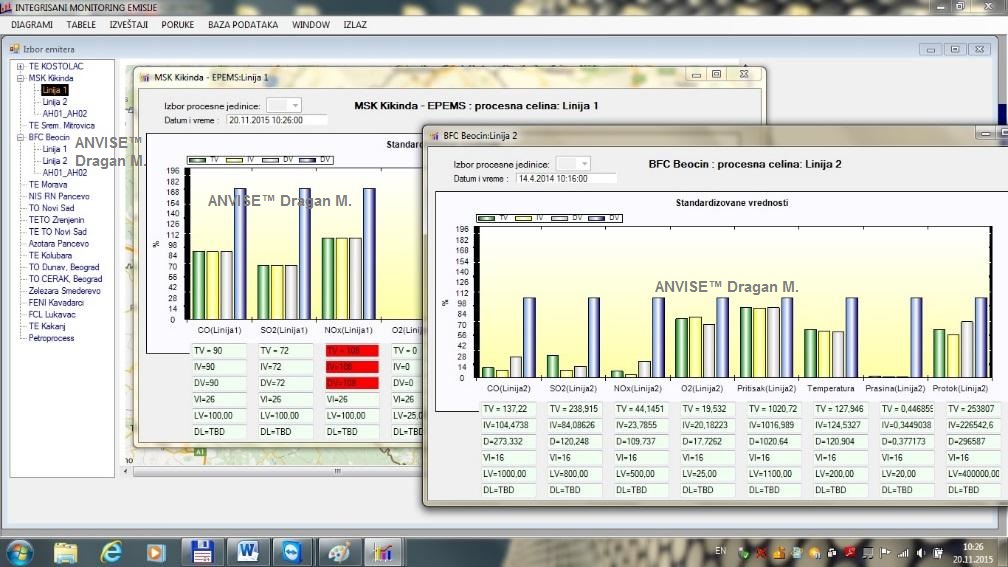

ANVISE™ - Advanced Network Visualisaton for (Gas) Emission - ENVIRONMENTAL MONITORING & REPORTING

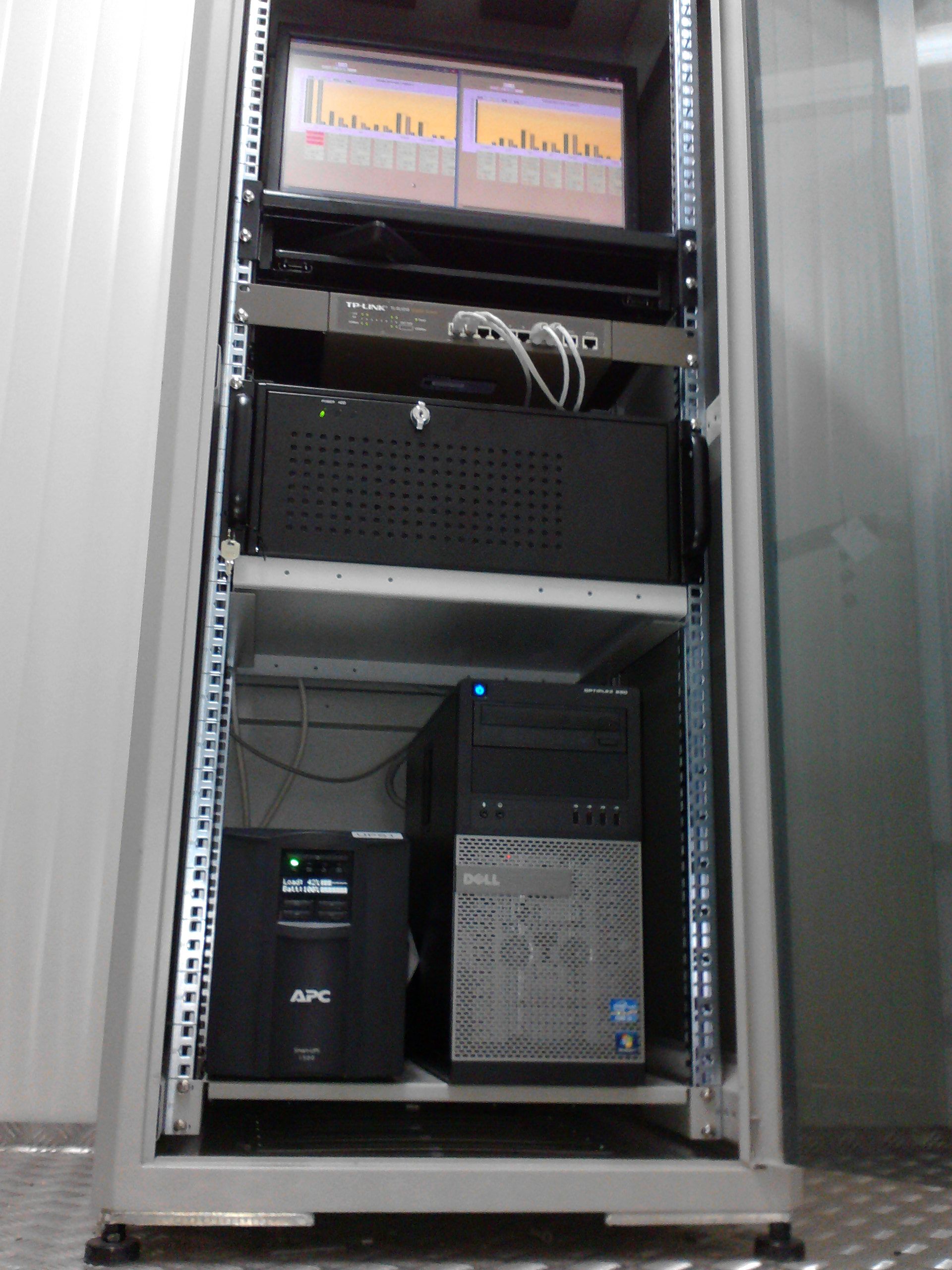

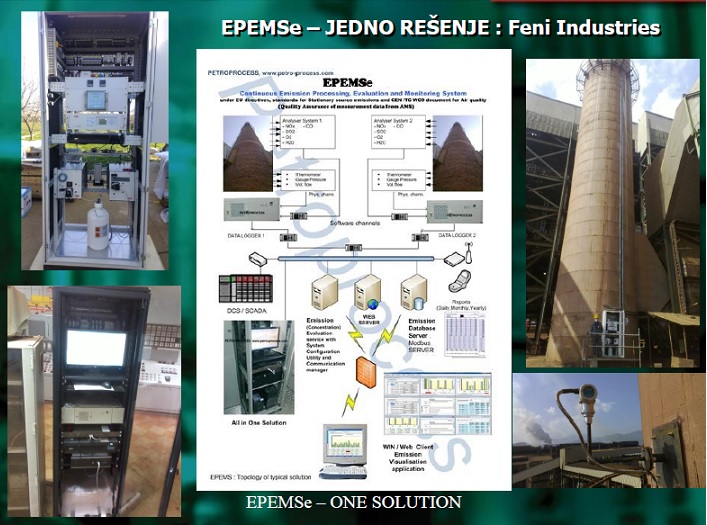

ANVISE project : Emission Processing, Evaluation and Monitoring System EPEMS210 DESIGN, Novi Sad, Petroprocess, Author & Project architect

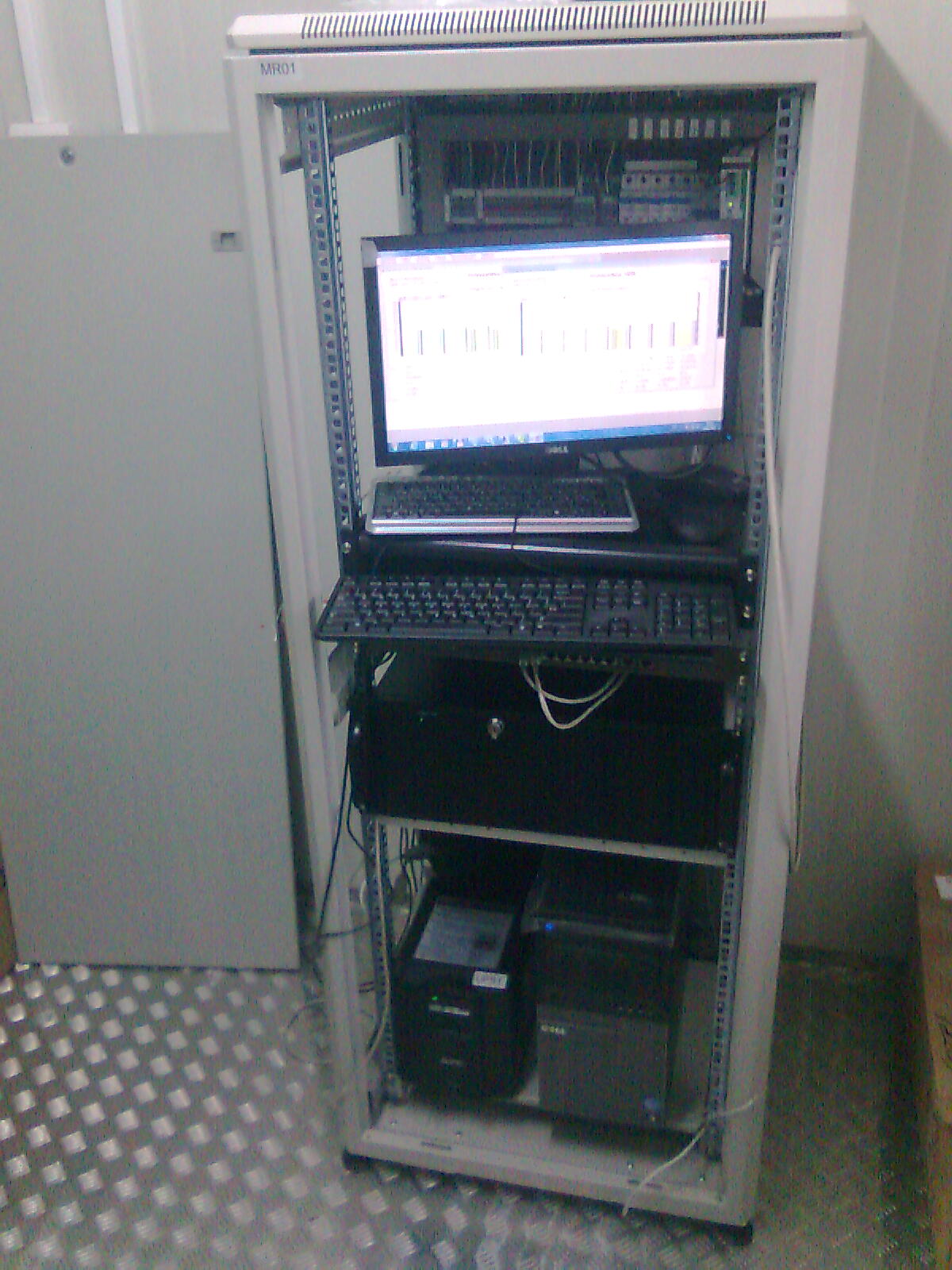

Quality Assurance of CEMS

Link:Emission Processing, Evaluation and Monitoring System EPEMS210




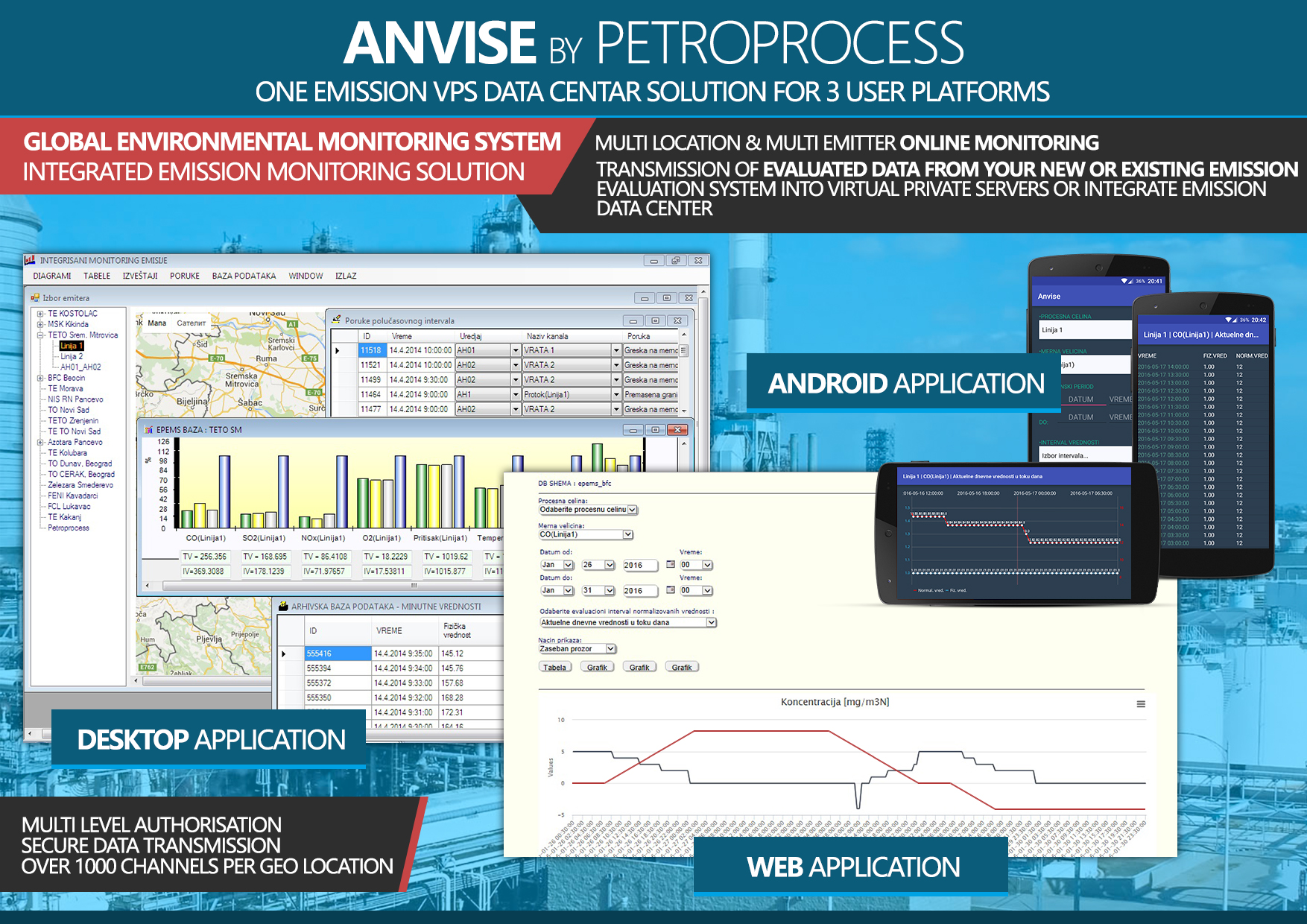

Private Cloud - Emission Data Centar Solution for 3 user platforms design - GLOBAL ENVIRONMENTAL MONITORING SOLUTION, Author & Project architect

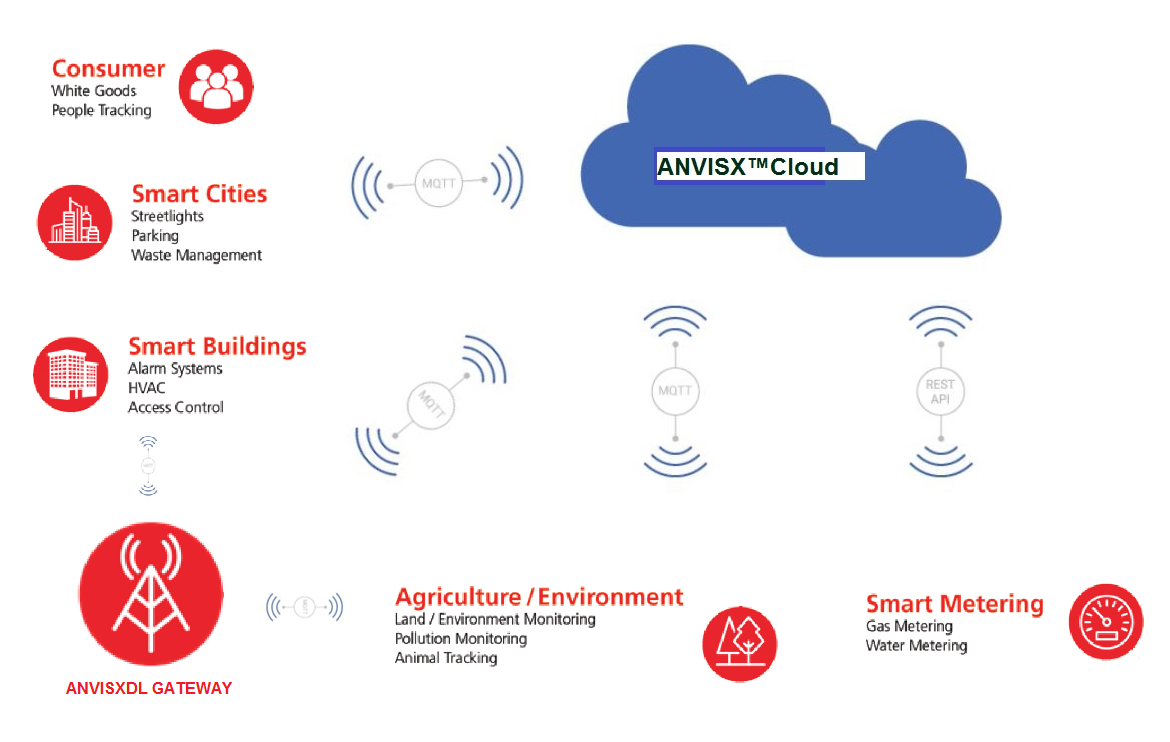

ANVISX™ PROJECT - Private Edge Cloud Data Center
with
Protocol GATEWAY/CONCENTRATOR and EDGE Cloud DESCISION DEVICE - ANVISXDL™

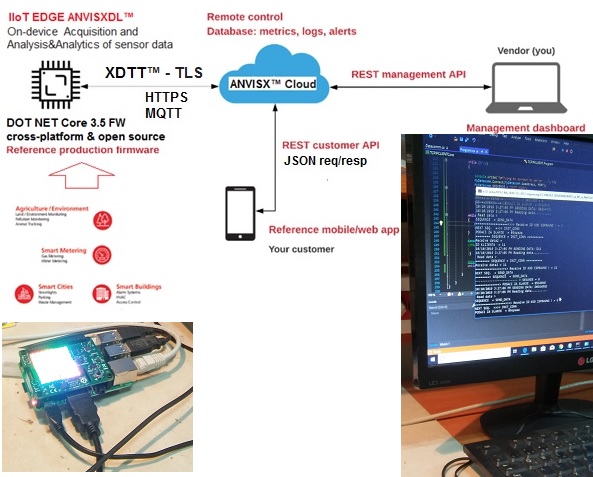

Private XDTT™ DATA ACQUISITION & Control TELEMETRY TRANSPOPORT COMMUNICATON PROTOCOL DESIGN

XDTT™ (X Data Telemetry Transport) protocol for communication between mobile/IIoT Edge Analytics&Descision devices and private ANVISX™ Edge Cloud Data Center, Author & Project architect

After successfully designed first version of ANVISXDL Industrial Data Logger and ANVISX Cloud Analytics& Data Center in the IIoT Edge Integration Platform concept, here is next step.
In Dragan's DR&D workshop, the 1.1 version of the XDTT (X Data TelemetryTransport) protocol for communication between Mobile
/ Industrial EDGE on-device (Acquisition and Analysis & Analytics of Sensor data - Industrial IoT, ANVISXDL),
and designed ANVISX Cloud Analytics & Center for Big Data, was successfully designed and tested.

XDTT ™ is a private 'message oriented' protocol with SSL/TLS implementation, and allows sending commands and functions related
to the analysis of acquired measurement data, as well as the transport of raw measurement data (analog or digital), GPS position,
processed (analytical) data and decisions (X Data), obtained on the basis of data acquired from connected slave IIoT devices,
sensors and / or PLCs to the designed master Edge fat IIoT device ANVISXDL ™ (as an Acquisition-Analytical Station), and/or
ANVISX ™ Cloud IIoT / Edge Data Center, via IP protocol (integrated TCP / IP packeting and protocol stack) and traditional communication
channels wired or wireless; Ethernet, GSM / GPRS, ISM, LPWA, LTE Cat NB1, 5G.
Special attention was during design of software implementation of XDTT adapters for communication channels GSM/GPRS 3G/4G.

XDTT ™ was developed on C#, in the DOT.NET Core 3.1 environment (cross-platform (Windows 10 IoT Core OS, Linux, macOS, mobile devices),
and open-source framework), so it can be easily deployed on IIoT platforms and with Intel or Arm Cortex processors,
like XDTT server, and to the Windows / Linux VPS Cloud Platform (ANVISX ™ Cloud Data Center), where it starts as an XDTT client.
Delivered via the XDTT API within XDTT DLLs, which provide TLS connectivity for the target OS / HW platform, for the server (VPS Cloud Data Center)
and client side (Edge IIoT), and the EVENT HANDLER registration mechanism allows for additional user upgrades defined data processing functions.
Initially, there is a mechanism for updating data on the VPS side, for MySQL and SQLite databases, and all measurement values
(data from mobile / IIoT Edge) or commands on the server side are updated to TXT files respectively, for each measurement channel
by UUID / GPS location (as topics by MQTT).



   PROJEKTI / PROJECTS (BEST OF): 1989 - 2011

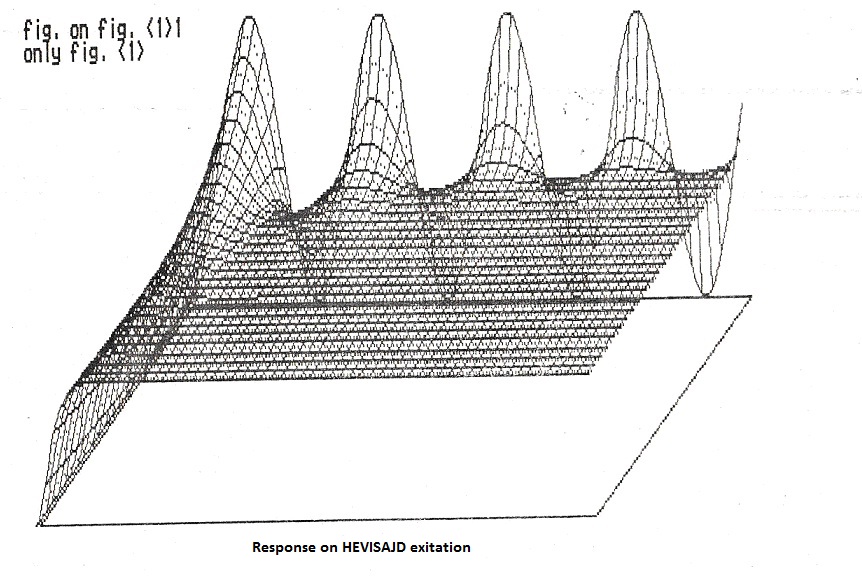

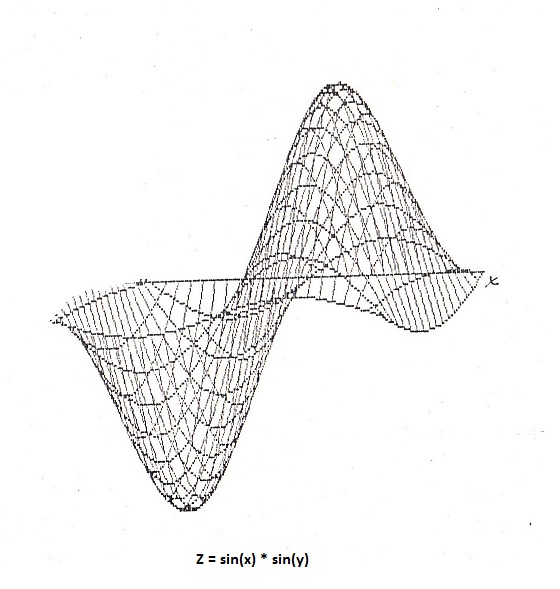

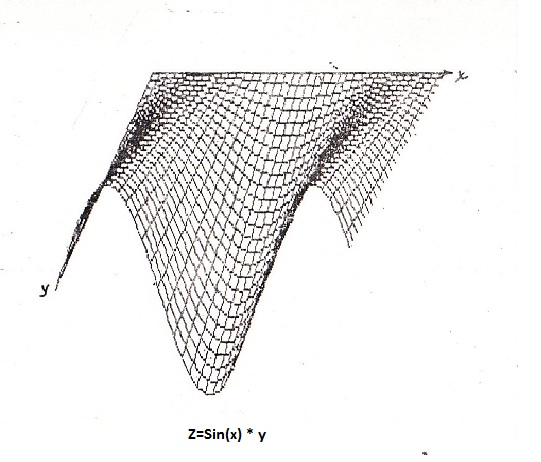

 1) Graphical presentation of Analytical function in 3D & LINEAR 3D TRANSFORMATION : Program za 3D prikaz analitičkih funkcija , Fakultet tehnickih nauka Novi Sad, Turbo Pascal 3.0, 1989/90
 2) ACQU4 - Application for Data Acquisition from substations -PL Controllers, Turbo Pascal 3.0, Elektrousluga,Novi Sad. 1992
 3) ISAC - Object oriented software (OOA&Design) for Data Acquisition and Control, Integrated with Graphical Editor, Turbo Pascal 4.0, Elektrousluga 1994
 4) Glavni projekt + teh. dokum. za upravljačko-informacioni sistem procesa susenja poljoprivrednih kultura : PLC kontroler + SCADA softver,Turbo Pascal 4.0,Novi Sad, R.Šancevi, 1995

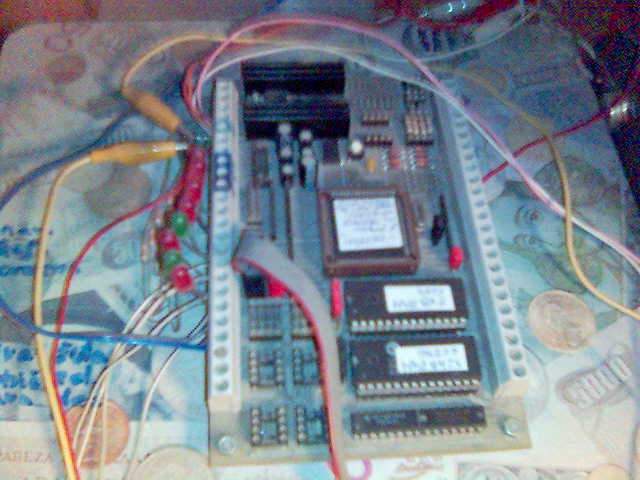

 5) Specijalni alarmni uređaj na bazi mikrokontrolera Motorola uC 68HC11E2 , Elekrousluga / Minex / ICE Lab., 1998/99
 6) Kontrolni uređaj za upravljanje asihronim motorima za garazna vrata na bazi mikrokontrolera Motorola MMC 68HC11F1, Minex, 1998/99
 7) Glavni elektro-energetski projekat Trznice , Minex, 1999
 8) Glavni elektro-energetski projekat ozvucenja trznice 'Najlon', Minex, 1999
 9) Aplikacija za automatizaciju komercijale radio stanica ,ACCESS Data Base, Visual Basic 5.0, R.Sajam, ICELab,2001
 9B) Aplikacija za automatizaciju komercijale radio stanica , migracija na Oracle DB8i, 10g, Forms 6.1, ICELab,2005/2007
 10) OFIM : Komercijala i osnovno mat. - finansijsko knjig. za prodavnice (ponuda-profaktura, avansni racun, konacni racun, prijemnica u magacin,izvestaji, kartica artikla) ,Oracle DB8i/10gXE,Forms6i, 2006, rev2012

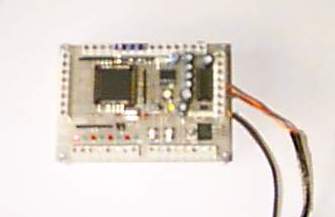

 11) Alarmna centrala sa 5 zona na bazi mikrokontrolera Motorola MMC 68HC11E2, ICE Lab.,2002
 12) Korektor napona 2500 VA,jednostepeni, ~192-230 V, ICE Lab.,2001
 13) Invertor =12V/~220V/200VA sa automatskim punjačem i zaštitom akumulatora(12V/48Ah) od pražnjenja (10,8V), ICE Lab., 2002
 14) RT8 - 8 kanalni IN/OUT ON-OFF termoregulator sa histerezom & 4C displej,optotriaci na izlazu,MMC 68HC711E9. Zadavanje setpoint temperature i histereze., 2003
 15) Aplikacija ENaS on Oracle 8i/f6i, e-DOC - Automatizacija procesa Javnih nabavki;Energosoft,rukovodilac realizacije projekta,2004
 16) Aplikacija EMoS on Oracle 10g/f9i (Internet Energy Monitoring System - Pracenje energetske efikasnosti TETO),Energosoft,glavni projektant,2004/05
 17) Aplikacija MEDIKA on Oracle 8i/f6i,Pracenje realizacije programa ogleda za srednje skole; Ministarstvo prosvete, ICElab,glavni projektant, 2005

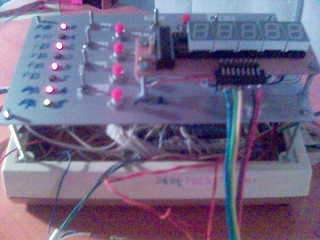

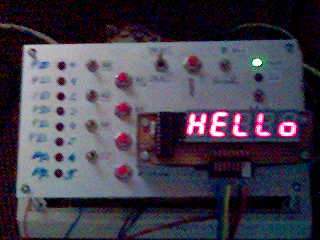

 18) Kompletan Razvojno-simulacioni sistem (programiranje OTP/EPROM-a)za Motoroline PLCC52 mikrokontrolere serije 68HC811E,711E,A ICElab,glavni projektant, 2005

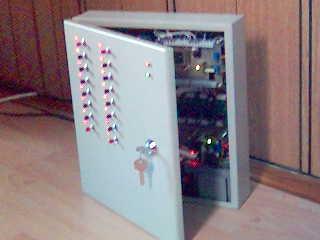

 19) DUM16 - Specijalni alarmni uređaj sa 16 zona, ICElab,glavni projektant, 2006
 20) Implementacija FUZZY modelovanja ocene sumnje u neovlaščenu potrošnju el. energije ,Oracle DB8i,Forms6i&Report Builder,Energosoft,glavni projektant, 2006
 21) AMR PROXY SERVER - Service Provider for CIS&Billing > Povezivanje AMR i CRM sistema koristeći servise po CIM IEC 61968-9 i XML SOAP protokol, Energosoft,glavni projektant, 2007/08

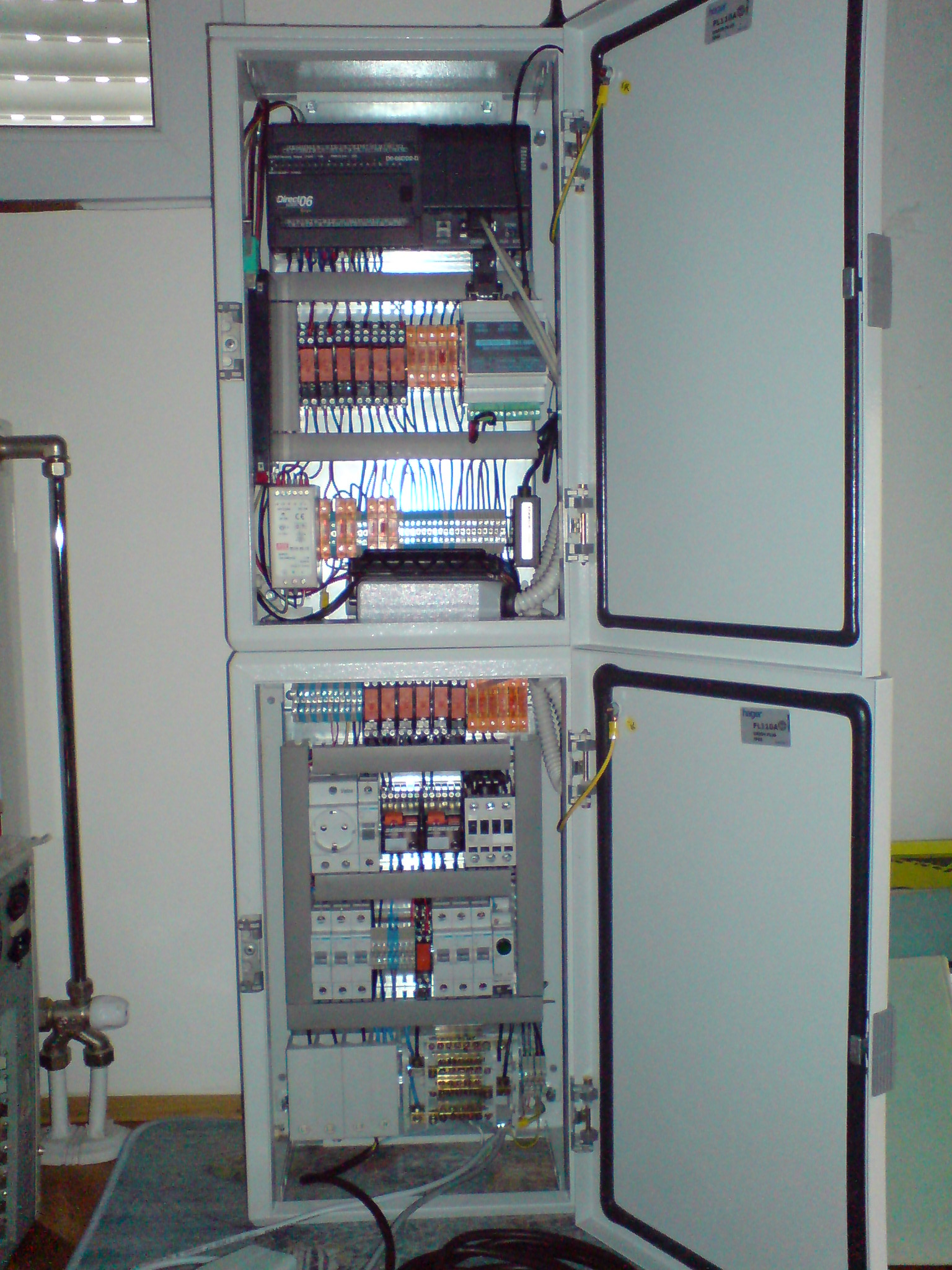

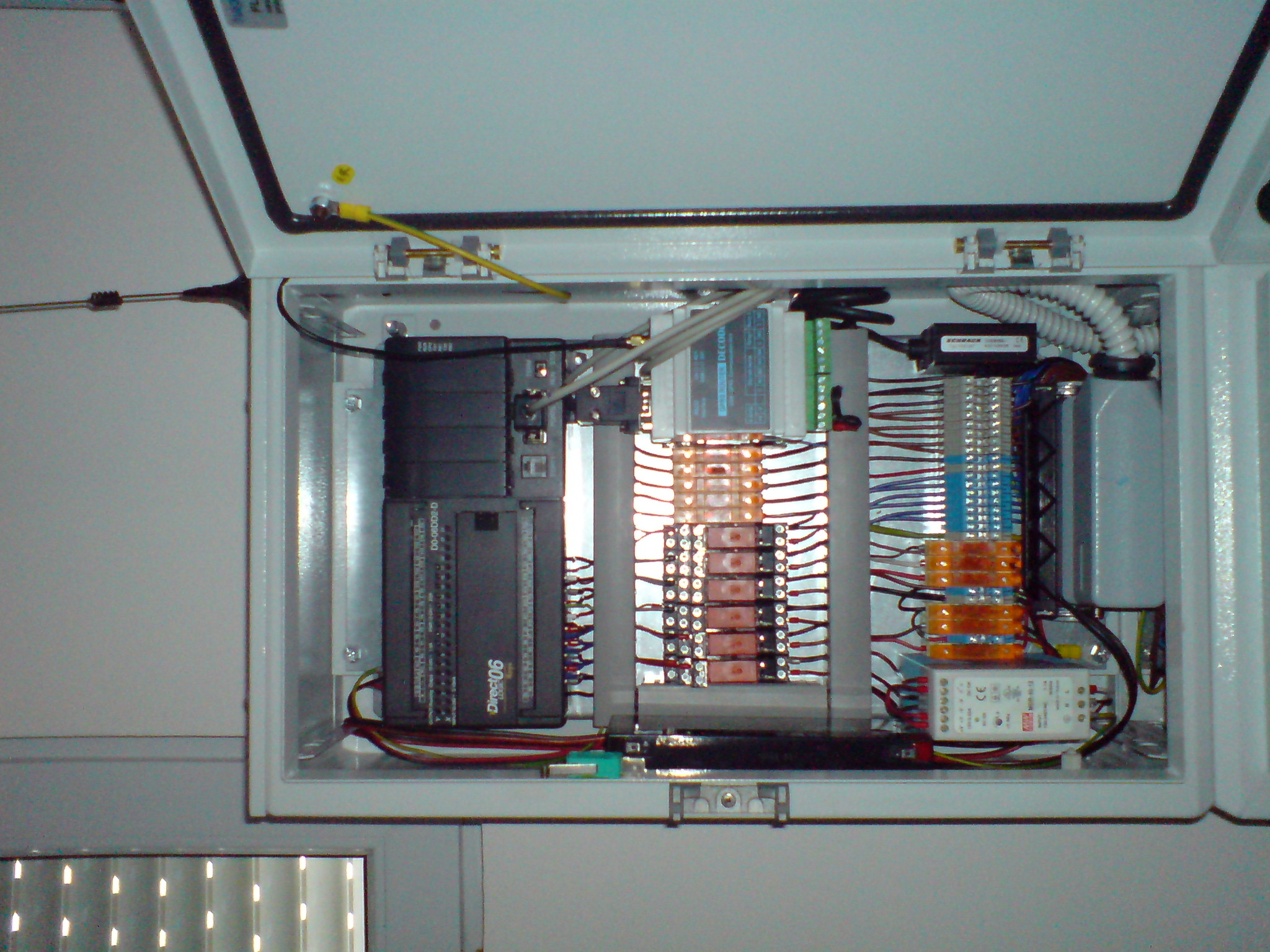

   22) TARMU - Sistem za daljinski nadzor i upravljanje preko GPRS/a,TOSUA doo, glavni projektant,2008
 23) VGPMMS - Visual Global Position Mobile Management System (GPS/GPRS,SOA,SOAP), Cellular Enterprise, glavni projektant,2010
 24):::Test ASP stranice korišćenjem objekta XMLDOM/XMLDSOM (MSXML3.dll) za prikaz i ažuriranje XLS i XML dokumenta preko XSLT (XML file baza)
   25) Quality Assurance of CEMS - EPEMS210, Emission Processing , Evaluation and Monitoring System , sw & hw project design 2010,Petroprocess ,implemented 2011
   26a) 8-channels regulated single ended current source with LCD (2-25mA/1000 Ohms LINE resistance per channel , max. 200mA) ::: Device for testing process equipment,hw project design 2012,Petroprocess
   26b) 8- channels voltage regulated (or sensor) single ended current transmitter with LCD (0-300mV / 3.5-75mA per channel) ::: Device for testing process equipment,hw project design 2012,Petroprocess
   27a) Voltage source (single ended) 0 - 2000mV ,current sourcing up to 40mA, 1mV / div fine regulation with LCD ::: Device for testing process equipment,hw project design 2012,Petroprocess
   27b) Simetrical voltage source -1000mV to +1000mV,current sourcing up to 40mA, 1mV / div fine regulation with LCD ::: Device for testing process equipment,hw project design 2012,Petroprocess
   28) (H)VAC ON/OFF TWO STAGE Temperature Regulator with Histeresis (with changing direction of rotation on one phase asychronous motor, two temp. sensors & histeresis settings),hw project design 2012,Petroprocess
  29) Ground Loop Current (ground looping) and noise Problem and Solutions (Brief Recapitulation), 2012,Petroprocess
   30) Digital PID regulator with FUZZY segment in control loop with LCD display and triak & relay out for load control, based on Atmel 328 & Arduino loader & IDE, hw/SW project design 2016,Petroprocess

   Autorski radovi, konferencije, savetovanja, priznanja, članci za časopise i revije iz akvizicije podataka i SCADA upravljanja : 1993 - 2014

 1) Naučno-strucni skup - Poljoprivredna tehnika 93, Novi Sad ,prijavljen rad , UDK 631.365.036;621.317.7;65.011.56
 2) Simpozijum - Tehnologija prerade vode 94 - Institut “Kirilo Savic” Beograd , prijavljen rad
 3) Simpozijum posvecen procesnom upravljanju (Gornji Milanovac 94) , prijavljen rad
 4) Naucno-strucni skup - Merenje i automatizacija u poljoprivredi MAP'95,Poljoprivredni fakultet Novi Sad, prijavljen rad, UDK 631.365.29;633.88;53.083
 5) Osnove prikupljanja podataka i upravljanja , časopis Mikroelektronika '98
 6) Projektovanje vlastitog SCADA sistema - I deo , časopis Mikroelektronika '98
 7) Projektovanje vlastitog SCADA sistema II , časopis Mikroelektronika '98
 8) Internet aplikacija za pracenje energetske efikasnosti distribuiranih tehnoloških procesa (Prvo regionalno savet. o el. distribut. mrežama, CIRED 2004,H.Novi)
 9) Posebno priznanje u kategoriji 'UPRAVLJANJE' na dodeli JISA , DISKOBOLOS 2005 , vidi kandidate
 10) Prva međunarodna konferencija - Daljinsko hlađenje i grejanje ,DHG 2006 Novi Sad, prijavljen rad iz energetstke efikasnosti termoelektrana-toplana
 11) Drugo regionalno savetovanje o elektrodistributivnim mrežama,CIRED 2006, Zlatibor, autorski rad : Informacioni podsistem za praćenje energetske efikasnosti
 12) 28. savetovanje o velikim električnim mrežama, CIGRE 2007 ,Vrnjacka Banja, autorski rad:
WEB ORJENTISANI INFORMACIONI PODSISTEM ZA CENTRALIZOVANO PRAĆENJE ENERGETSKE EFIKASNOSTI TERMOELEKTRANA

 13) Symposium POWER PLANTS 2008 ,Vrnjacka Banja, autor paper:WEB ORIENTED INFORMATION SUBSYSTEM FOR ENERGY EFFICIENCY MONITORING IN TERMOELECRICITY POWER PLANT
 14a) IV Regional Conference : INDUSTRIAL ENERGY AND ENVIRONMENTAL PROTECTION IN SOUTH EASTERN EUROPE, jun 2013:EMISSION PROCESSING, EVALUATION AND MONITORING SYSTEM (EPEMS)
 14b) Integrisani simpozijum / Integrated Symposium 42nd SYMPOSIUM ON “AIR PROTECTION, okt 2014:EMISSION ACQUISITION, PROCESSING, EVALUATION ANDMONITORING SYSTEM BASED ON CONCEPT OF EMBEDDED DEVICE DESIGN (EPEMSe)
